The power solution for all kinds of spindles Highest efficiency and 28,5 kHz PWM in spindle drive with lowest power losses in spindle, due to adjustable intermediate voltage circuit Powerful spindle drive with high output power reserves High flexibility because of various I/Os and enclosure options Oversized on-board chopper-resistor for powerful braking and shortest cycle times Large number of digital and analog inputs and outputs
Manual Accessories

Safety

This frequency converter offers an extended range of safety functions and thus complies with the requirements of EN 60204-1 and IEC 61800-5-2. In detail, the inverter is equipped with a Safe Torque Off (STO), a safety function to prevent unexpected start-up. This STO function corresponds to stop category 0.

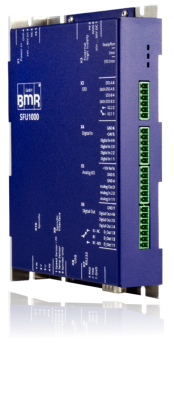

SFU 1000

Spindle:  max. 85V / 12A  DC     -  pluggable screw terminals 4Pin-2,5mm² Logic: 24V / 0,1 A  DC  (20V…30V)  -    plugable screw terminals  3Pin-1,5mm² Fuses FS1/FS2 internal T12A  /  T500mA  Output Power Spindle Connection U, V, W, PE  -   pluggable screw terminals  4Pin-2,5mm² Output Voltage max.  55 V AC Output Current Imax continuous phase current 12A / peak phase current 15A AC-Spindle: f = 4.000 Hz  /  max. 240.000 rpm DC-Spindle: f = 1.667 Hz  /  max. 100.000rpm 4 x freely programmable  ( 0 / 24V ) "0": 0..7V, "1": 18..24V  pluggable screw terminals  6Pin-1,5mm² 2 x freely programmable  ( 0..10V )  pluggable screw terminals  6Pin-1,5mm² at  pluggable screw terminals  2,5mm² Relay 1 x change over contacts (NO/NC), freely programmable  3 x freely programmable  ( 0 / 24V ) je 10mA max at  pluggable screw terminals   1,5mm² 2 x freely programmable (0…10V) at  pluggable screw terminals  7 x 1,5mm² U ref +10V Ref / 100mA  Reference Voltage for Analog-In U h +24V  STO-channel A, STO-chanel B: ( 0 / 24V ) for power stage release STO-Monitor Relay (normally open) for status feedback at  pluggable screw terminals  7 x 1,5mm² LED green:  Ready and indication of rotational speed  LED red:  Indication of errors and warnings  LED yellow:  STO-Status Interfaces RS232  Interface: Dsub9male ( 115.200Bd, 8 Data 1 Stop Bit, No Parity ) USB  Interface: USB-Mini Dimensions  (L x B x H) 173 x 125 x 30 mm Brake Chopper 47Ohms / 10W Operating Conditions 5°C to 40°C  /  Humidity max. 85% Power Supply Temperature Sensor: PTC, KTY or PT1000 Speed Sensor: Magneto Resistor Control Inputs Digital In: Analog In: Digital Out: Analog Out : Safety Functions           "Safe Torque Off" STO 1000VA / S1 100%          1350VA / max. Operation Displays Output Frequency Auxilary Voltages Spindle-Sensor Inputs Control Outputs
3D drawing   (.step)
back
SFU 1000
Manual Spindle:  max. 85V / 12A  DC     -  pluggable screw terminals 4Pin-2,5mm² Logic: 24V / 0,1 A  DC  (20V…30V)  -    plugable screw terminals  3Pin-1,5mm² Fuses FS1/FS2 internal T12A  /  T500mA  Output Power Spindle Connection U, V, W, PE  -   pluggable screw terminals  4Pin-2,5mm² Output Voltage max.  55 V AC Output Current Imax continuous phase current 12A / peak phase current 15A AC-Spindle: f = 4.000 Hz  /  max. 240.000 rpm DC-Spindle: f = 1.667 Hz  /  max. 100.000rpm 4 x freely programmable  ( 0 / 24V ) "0": 0..7V, "1": 18..24V  pluggable screw terminals  6Pin-1,5mm² 2 x freely programmable  ( 0..10V )  pluggable screw terminals  6Pin-1,5mm² at  pluggable screw terminals  2,5mm² Relay 1 x change over contacts (NO/NC), freely programmable  3 x freely programmable  ( 0 / 24V ) je 10mA max at  pluggable screw terminals   1,5mm² 2 x freely programmable (0…10V) at  pluggable screw terminals  7 x 1,5mm² U ref +10V Ref / 100mA  Reference Voltage for Analog-In U h +24V  STO-channel A, STO-chanel B: ( 0 / 24V ) for power stage release STO-Monitor Relay (normally open) for status feedback at  pluggable screw terminals  7 x 1,5mm² LED green:  Ready and indication of rotational speed  LED red:  Indication of errors and warnings  LED yellow:  STO-Status Interfaces RS232  Interface: Dsub9male ( 115.200Bd, 8 Data 1 Stop Bit, No Parity ) USB  Interface: USB-Mini Dimensions  (L x B x H) 173 x 125 x 30 mm Brake Chopper 47Ohms / 10W Operating Conditions 5°C to 40°C  /  Humidity max. 85% Power Supply Temperature Sensor: PTC, KTY or PT1000 Speed Sensor: Magneto Resistor Control Inputs Digital In: Analog In: Digital Out: Analog Out : Safety Functions           "Safe Torque Off" STO 1000VA / S1 100%          1350VA / max. Operation Displays Output Frequency Auxilary Voltages Spindle-Sensor Inputs Control Outputs
