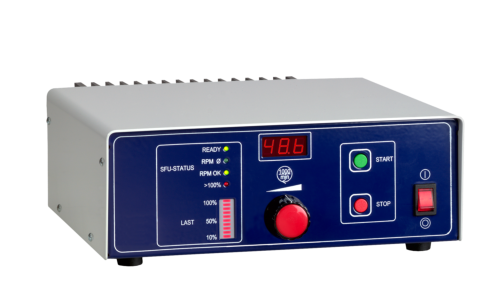

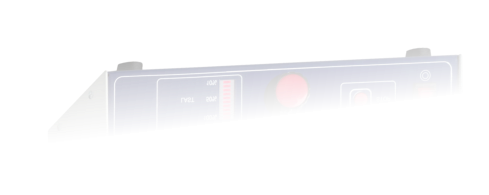

SFU 0300
Manual Accessories
Homepage-Sicherheit
SSE
Profibus Profinet etc… SFU-Communicator:
Technische Daten Technical specifications
SFU
0300
Netzanschluss Supply connection
115/230 V 50…60 Hz
Nennleistung Continuous output power (S1 – 100%)
1.500 VA
Ausgangsspannung Output voltage
100 V AC @ 115 V 200 V AC @ 230 V
Phasendauerstrom Continuous phase current
4,5 A
Phasenspitzenstrom Peak phase current
9,0 A
Ausgangsfrequenz Output frequency
AC max. 4.000Hz
Motoranschluss Motor connection
Tisch / Desktop/ 19": alle gängigen Steckertypen / all motor connectors available SSE: Steck-Schraubklemmen / pluggable screw terminals
Spindelkennlinien Spindle characteristics
max. 16, intern abgelegt max. 16, stored internally
Sensoreingänge Spindle sensor inputs
Drehgeber / speed sensor Temperatur / temperature: PTC, KTY, PT1000, …
Steuereingänge Control inputs
1 x Analog: 0 – 10 V 3 x Digital: 0/24 V
Steuerausgänge Control outputs
1 x Analog: 0 – 10 V 2 x Digital: Relaisausgänge / relay outputs
Schnittstelle Interface
RS 232
Schutzart Protection
IP20
Maße B x H x T (mm) Dimensions W x H x D (mm)
Desktop: 243 x 94 x 268 SSE: 90 x 312 x 268
Gewicht Weight
Desktop: ca. 4,6 kg SSE: ca. 4,9 kg
The smallest of the compact converter for high voltage spindles up to 1 kW Galvanic isolation of all spindle control cables from the mains by optocoupler Integrated brake chopper resistor 50 W One input can be configured with stop function Available as desk-top unit and control cabinet version (SSE) Optional with sinusoidal filter
