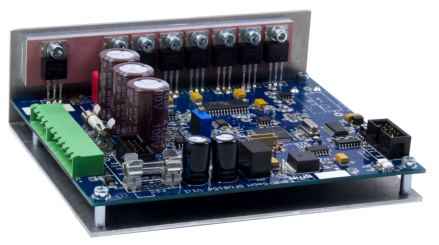

SFU 0156
SSE
SFU 0156 SSE Manual Accessories
Homepage-Sicherheit
3D drawing   (.stl) Profibus Profinet etc… SFU-Communicator:
Technische Daten Technical specifications
SFU
0156
Versorgungsspannung Power supply voltage
Logik / logic: +24 V/ 0,25 A DC (18 V…30 V) Spindel / spindle: max. 85 V / 8/10 A DC steckbare Schraubklemmen / pluggable screw terminals 4 mm²
Sicherungen Fuses
FS1: T 500 mA SMD FS2: T 8 A SMD
Nennleistung Continuous output power
max. 640 VA / S1 – 100%
Ausgangsspannung Output voltage
max. 55 V AC
Phasendauerstrom Continuous phase current
8 A
Phasenspitzenstrom Peak phase current
9 A
Ausgangsfrequenz Output frequency
AC: 4.000 Hz / max. 240.000 Upm rpm DC: 1.667 Hz / max. 100.000 Upm rpm
Motoranschluss Spindle connection
4-pol: U, V, W, PE steckbare Schraubklemme 4 mm² 4-pol: U, V, W, PE pluggable screw terminals 4 mm²
Spindel Kennlinien Spindle characteristics
max. 16, intern abgelegt / stored internally
Steuereingänge Control inputs
1 x Digital: Start/Stop (0/24 V) "0" = 0…7 V, "1" = 15…24 V 1 x Analog: Drehzahl Sollwertvorgabe / set value rotational speed (0…10 V)
Steuerausgänge Control outputs
3 x Digital: frei konfigurierbar / free configuartion Open Collector 45 V / 0,5 A 1 x Analog: PIN 6 / AO - Analog out: Lastanzeige / output load (0…10 V)
Sensoreingänge Spindel sensor inputs
PTC, KTY und PT1000
Betriebsanzeigen Operating status indicators
Umrichter bereit / converter ready: LED grün green Fehler / Error: LED rot red
Schnittstellen Interface
USB Interface (USB-Mini) RS232: 115.200 Bd, 8 Data 1 Stop Bit, no parity
max. Maße B x H x T (mm) max. dimensions W x H x D (mm)
Open frame: 132 x 113 x 42 SSE: 139 x 128 x 45
Gewicht Weight
ca. 0,5 kg
Bremschopper Chopper resistor
47 Ω / 10 W
Betriebsbedingungen Operating conditions
5 – 40 °C / rel. Luftfeuchtigkeit / rel. humidity of air max. 85 %
Sensorless operation of asynchronous and synchronous spindles Rotational speeds up to 240.000 rpm (4.000 Hz) Continuous output power 760 VA / S1 – 100% On board chopper-resistor Integrated intelligent recovery protection In case there is less space for mounting but high power is required The perfect solution for all CAD/CAM and dental applications Maximum performance at all operational ranges with outstanding high acceleration deceleration capabilities For all temperature sensors: PTC, KTY and PT1000 Open frame design or control cabinet housing (SSE)
